K13
- Sound Activated Tape Recorder Switch
Can be adjusted to turn on your tape
recorder through its REMOTE plug. Has feedback and delay circuit for robust
operation. Very sensitive. Proven circuit. Needs 6V plug pack for most stable
operation.
K20

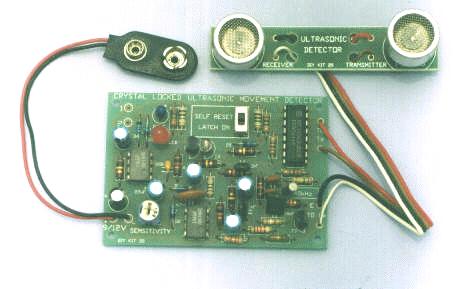

- Crystal Locked Ultrasonic Movement Detector 1
Matched 40 kHz transmitter/receiver
pair of transducers detects movement at over 7 metres. Separate PCB for mounting
the active units. Latch/reset PCB-mounted switch on board. Sensitivity control.
9V battery operation. Transmitter is crystal- locked at 40kHz for maximum efficiency.
Datasheet on ultrasonic transducers used here.
K21
- Two Station Intercom
Simple two wire intercom. Each unit
with its own speaker, microphone and amplifier (LM386.) Can be modified to a
hard wired "bug". With 4 strand ribbon cable the power can be sent to the remote
"bug" unit from the receiving unit.
K26
- Fibre Optic Audio Link
Allows you to send sound through
plastic 1mm fibre optic cable. Matched transmitter/receiver pair. Two circuit
boards with a microphone at one end and a speaker at the other. 14 feet of fibre
optic cable supplied. Will work over 200 meters.
K29

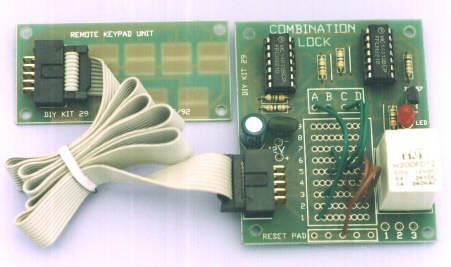

- Combination Lock
A basic but fully working combination
lock. Separate touch pad with 9 pads. Lock is reset if an incorrect digit is
pressed. Relay is capable of switching 12VDC/120VAC @ 10A. 12V operation. Robust
and versatile.
K30
- PIR Movement Detector
Circuit designed around a recently
developed movement IC. Circuit utilizes PIR detector and a light dependent resistor
(LDR) to provide an optimized circuit that will detect motion up to 6 metres
away. Operates on 9-12 VDC. Note that the PIR sensor & the PCB-mounted fresnel
lens fit on the other side of the PCB; the solder side. This is to allow the
unit to be mounted inside a container with the detecting lens poking out and
the controls facing inside the box.
K33
- Tape Recorder Switch for Telephone
This kit uses a FET to switch on
a tape recorder when the phone is picked up. It will work with low voltage tape
recorders as low as 1.5V. It requires the REMOTE & MIC jacks of the tape
recorder to be available. Plugs are provided.
K49

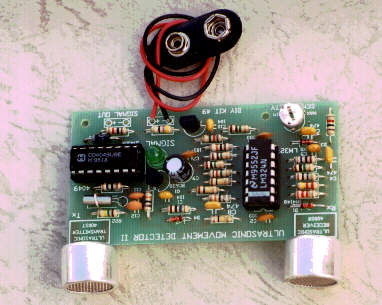

- Crystal Locked Ultrasonic Movement Detector 2
Our first ultrasonic movement detector,
Kit 20, has been very popular. This is another circuit design which we believe
is more sensitive with fewer components. The transducers are mounted on the
same PCB as the circuit.Datasheet
on ultrasonic transducers used here.
K55
- Suction Cup Telephone Pickup
Uses a suction cup to attach to your
telephone handset. Picks up the magnetic field produced in the earpiece by both
sides of a telephone conversation. Feeds into an 8 ohm speaker after amplification.
Volume control trimpot built in.
K76
- PIR module, cable connection, (assembled), KC7783
A fully assembled and tested miniature
PIR module with only 3 connections: Power, Ground & Output. Rated for 5 - 10VDC
input power. Has 2 1/2" cable attached as shown in the photo. Uses RE200B PIR
sensor (datasheet page
1, page 2), KC778B
movement detector IC (datasheet
page 1, page 2)
and PCB mounted Fresnel lens.
Output is an active high pulse of approx. 0.5 seconds and remains active as
long as there is motion. Range up to 3 metres. Sensitivity is fixed. Small size,
25 x 35mm (1" x 1.35").
K130
- IR Light Fence/Door Minder
Set up an invisible infra-red light
beam to monitor doorways or any other area. When the beam is broken a relay
(maims rated) is tripped which can be used to sound a bell or alarm. Ideal for
customers entering a shop, cars coming up a driveway, etc. Separate transmitter
and receiver boards. Transmitter can be powered from receiver board (extra plugs
supplied). Uses modulated 38KHz carrier signal. 9-12VDC operation. IR LED
and sensor datasheets.
K133

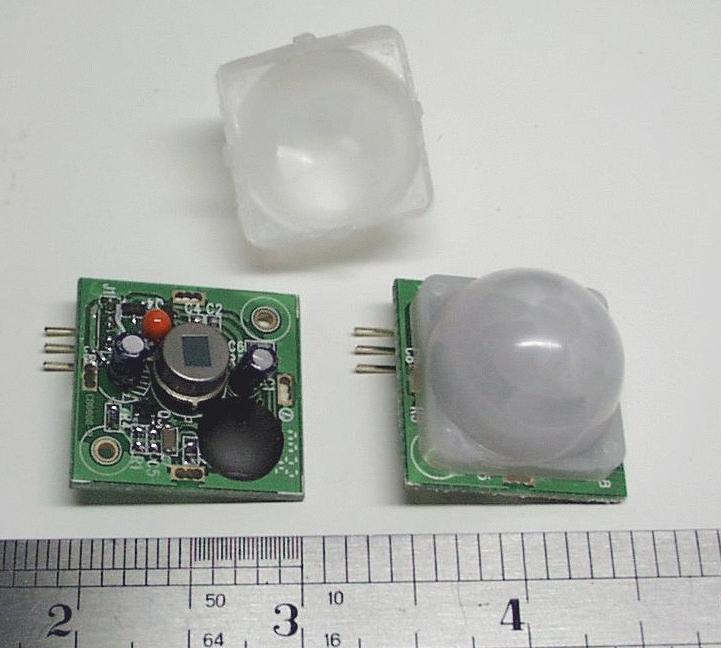

- PIR module, 3-pin connector, (assembled), KC7786
New 12VDC movement detector PIR module
with no cable and only 3 connections:
Power, Ground & Output. Similar to K76.
Small size, 27mm (1.1")
square.
The main differences between K76 and K133 are:
1. K76 has a 2" cable while K133 has 3 pins directly off the PCB.
2. K76 is active high output; K133 is active low.
3. K76 can operate on 5V; K133 needs 12V.
